Description
Designed and manufactured in the UK.

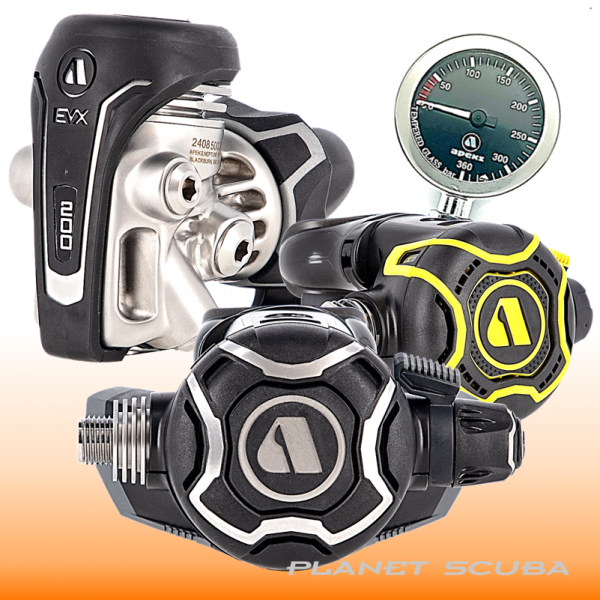

EVX200 DIN First Stage, Second Stage & Octopus Features:

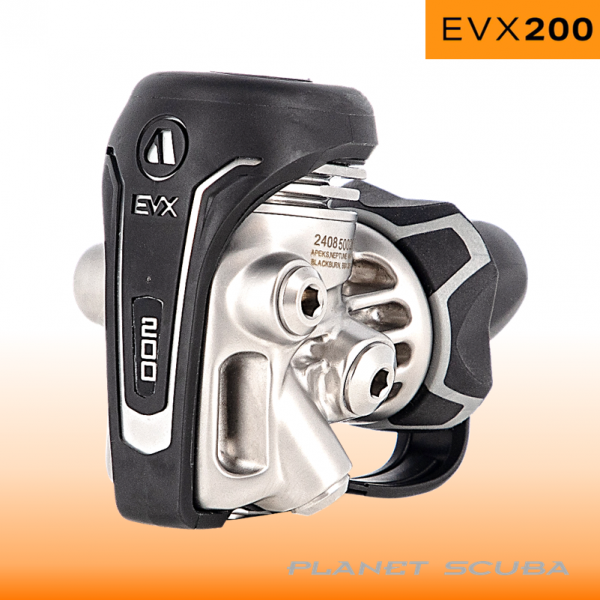

First Stage
- Chrome plated brass body with heat exchanging ribs for maximum thermal performance.
- Ribbed diaphragm clamp for improved heat exchange in cold water conditions.
- Unique over-balanced diaphragm design – as the diver descends, the over-balancing feature allows the medium pressure gas in the hose to increase at a faster rate than ambient. This results in superior performance at depth.
- ACD system prevents water ingress.
- 5 x medium pressure ports for improved hose orientation, 2 x angled high pressure ports for optimal hose routing and fitting of transmitters.
- Double swivel hose for greater freedom of movement and comfort.
- DIN (300 bar) connection.
Second Stage & Octopus
- Ergonomic and simple to use venturi lever.
- Large breathing effort adjuster makes adjustment easy in cold water whilst wearing gloves.
- Laminar flow valve.2 stage progressive purge button.
- Reversible second stage for either a left or right hand gas supply configuration.
- A heat exchanger dissipates the cold caused by gas expansion while drawing in the warmth of the ambient water for a more comfortable breathe.
- Features an innovative Diver Changeable Exhaust system (DCE). The system gives the diver the ability to change from a small exhaust tee to a large exhaust tee. The regulator is supplied with both sets of exhaust tees.
- Comfo-bite mouthpiece.
- Flexible nylon braided hose, which has better cold water performance than traditional rubber hose.
Specs:
- Connections: Yoke and DIN available
- Type of first stage Over-balanced diaphragm design, environmentally sealed
- Body Type: One piece forged body
- Number of HP ports: 2 (7/16″” UNF)
- Number of MP ports: 5 (3/8″” UNF)
- Environmental: Dry Kit Standard
- First stage exterior: Satin chrome
- Orientation: Convertible LH or RH
- Coldwater Use: Yes – extreme
- Type of second stage: Pneumatically balanced
- Opening Effort Control Knob: Yes
- Integrated Venturi Lever: Yes
- Mouthpiece: Comfo-bite™
- Exhaust tee Diver Changeable: Two sets supplied
- Heat Exchanger: Yes
- Hose type Braided: Flexi-hose
- Nitrox compatible: Yes to 40% O2 when new, out of the box (21% in Europe).
Apeks TEK Gauge
- High quality chrome plated SPG
- Black faced SPG with luminescent numbers and hand that glows in the dark when charged with a light.
- The black face helps reduce glare and preserve night vision in low light environments i.e. inside a cave or wreck.
- 0 – 360 bar
- Max working pressure 300 Bar (4350 psi)
- Tempered glass face
- 52mm / 2″ diameter face
Package excludes BCD Low Pressure Inflator Hose.
