Description
The NEW easy-to-use ReefMaster RM-4K features a pocket-sized design with 14 megapixel still image sensor and ultra-high definition 4K video.
Key Features
- 14 megapixel Panasonic® CMOS image sensor for sharp colorful pictures
- 4K Ultra HD Video @ 30fps and 1080p HD video @ 60 fps
- 40m/130ft compact underwater housing with removable inner camera
- 140° Fisheye Lens – Get close to your subject and still fit everything into the picture.
- Underwater color-correction modes – Underwater Deep for diving and Underwater Shallow for snorkeling
- Easy 4 button controls for easy operation.
- Wi-Fi – wirelessly preview, download and share pictures/videos to smart phone or tablet with “SeaLife ReefMaster” app (free download from Google Play Store or Apple App Store.)
- Expandable memory using micro SDHC/SDXC memory card up to 128GB
- Compact design for easy handling and lightweight travel.
- Focus from 12” (30cm) to infinity (10X Close-up Lens or Super Macro Lens optional accessory.)
- Time lapse shooting at set time intervals – saves as video file or series of still images.
- Removable Li-ion rechargeable battery (1100 mAh / 3.8V / 4.2Wh for 2+ hours video or 500+ images.
- 2.0” 230K Hi-res TFT color LCD
- Expandable with popular SeaLife accessories (One or two Sea Dragon Photo-Video-Dive Lights, Close-up Lens, Super Macro Lens.)
Detailed Specifications
Image Sensor: 14 mega pixel Panasonic 1/2.3” CMOS sensor
Image resolution/sizes: 14mp (4320 x 3240 4:3)
10mp (4320 x 2430 16:9)
8mp (3840 x 2160 16:9)
5mp (2592 x 1944 4:3)
2mp (1920 x 1080 16:9)
Picture file format: JPEG
Video Resolution: 4K (3840 x 2160) at 30fps (frames per second)
2.7K (2704×1524) at 30 fps
1080p (1920 x 1080) at 60 fps
1080p (1920 x 1080) at 30 fps
720p (1280 x 720) at 120fps
720p (1280 x 720) at 60fps
Video file format: MPEG4 h.264 (.mp4)
Audio: Microphone: Yes (mono)*
Speaker: Yes (mono)
Audio format: MPEG-4 AAC (video/ audio compressed together)
* Note: Microphone is sealed inside permanently sealed housing which lowers audio recording volume.
Lens aperture: F2.8
Lens Optics: 6 element, fully multi-coated, aspheric optical lens
Focal Length: 2.5 mm (35 film equivalent = 14mm)
Focus type: Instant fixed-focus lens
Focus Range: 12 inches to Infinity (30cm to infinity)
Field of View*: 140° diagonal Fisheye Wide Angle Lens
Shutter speed: 1/25 to 1/2000 second
Shooting modes: Single capture, Time Lapse Photo and Time Lapse Video
White Balance (WB): Auto, Underwater Shallow, Underwater Deep, Daylight, Cloudy, Tungsten, Fluorescent
ISO: Auto, 100, 200, 400, 800, 1600 and 3200
Exposure Compensation: Exposure from -2.0 to +2.0 in 0.3 increments
Delay Timer: Off, 2 sec and 10 sec
LCD 2.0” TFT LCD color display 230K resolution (240 * RGB * 320)
Memory: Micro SDHC/SDXC memory card up to 128GB (Sold separately)
Recommend 128GB with Video Speed Class V30 (U3)
Read/write speed: 10MB/s
PC connection:
- PC: Windows XP / Vista / 7 / 8 / 10 and up
- MAC: OS X and up
Output ports:
- 1x USB 2.0 out (for charging battery and downloading to computer)
- 1x Micro HDMI out (for direct connection to HDTV)
Language Support: On-Screen Display: English, German, French, Spanish, Italian, Dutch, TBD
Printed manual: English
Online manual: German, French, Spanish, Italian, Dutch, TBD
Battery: Removable Li-ion battery. 1100 mAh, 3.8V. 4.2Wh.
Battery life: Still images: 2+ hours (Approx. 500+ images)
Video: 1.5 hours at 1080p and 1.2+ hours at 4K
WiFi range: 100ft (33m) on land.
Waterproof: Individually depth tested to 40m/130ft
Shockproof: 3ft / 1m
Buoyancy: TBD
Operating temp: Land: 0°F to 120°F (-18°C to 50°C)
Underwater: +33°F to +110°F(.5 °C to 44°C)
Storage temp: -20°F to +140°F(-29°C to +60°C)
Tripod mount: Standard ¼-20 tripod threads
Certification: CE, ROHS, FCC
Weight: 7.1 ounces (202 grams) UW housing w/ inner camera and battery.
Dimensions (LxWxH): UW Housing: 1.9” x 4.1” x 2.6” (4.9cm x 10.5cm x 2.6cm)
Inner camera: 1.3” x 2.3” x 1.6” (3.3cm x 5.8cm x 4.1cm)
Warranty: 1 year limited warranty

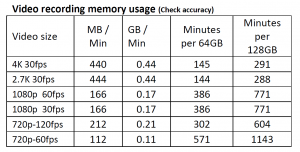

Video recording memory usage (Check accuracy)
What’s in the box
- SeaLife ReefMaster RM-4K Underwater Camera (Item SL350)
- 1x ReefMaster 4K inner camera
- 1x ReefMaster underwater camera housing
- 1x Wrist strap
- 1x USB cable 30”/75cm (USB-A to micro-B)
- 1x Moisture Muncher 1-capsule sampler
- 1x Instruction Manual
